John Deere Z930M ZTrak™ 60-Inch – High-Performance Commercial Zero-Turn Mower

The John Deere Z930M ZTrak™ is a professional zero-turn mower designed for landscapers and demanding users who seek power, durability, and flexibility. Thanks to its rugged construction, multiple mower deck options, and high-performance engine, it delivers exceptional cut quality even in the most challenging conditions.

1. Professional Mower Decks – 60 Inches

Available options:

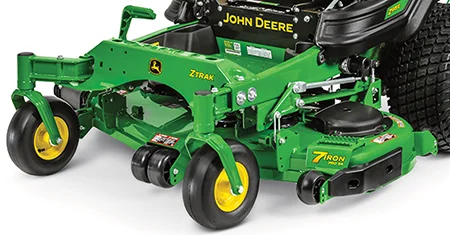

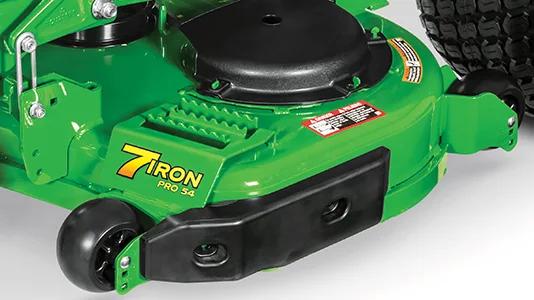

• 60" 7-Iron™ PRO side-discharge deck (7-gauge steel – 4.5 mm – forged for maximum strength)

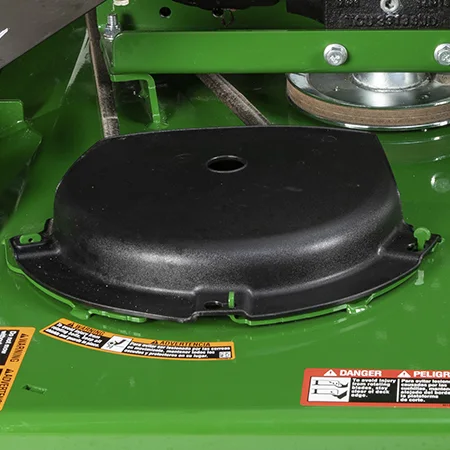

• 60" Mulch On Demand™, allowing instant switching from side discharge to mulching

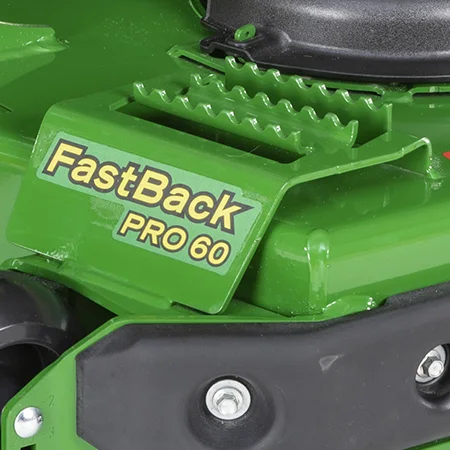

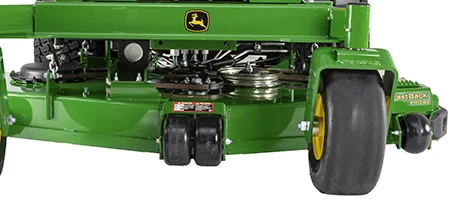

• 60" FastBack™ PRO rear-discharge deck to reduce clippings blowout and grass buildup

Cut quality: blade tip speed up to 18,500 fpm (7-Iron PRO)

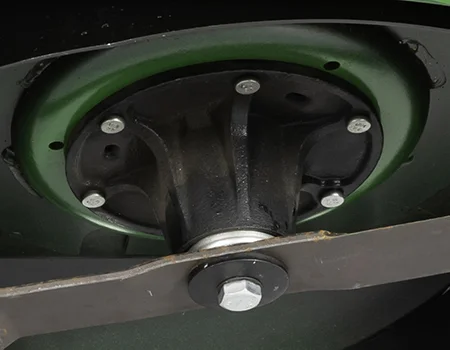

Number of blades: 3 high-performance blades
Cutting height: 1 to 5.5 in (2.54 to 14 cm) in 0.25 in (0.64 cm) increments

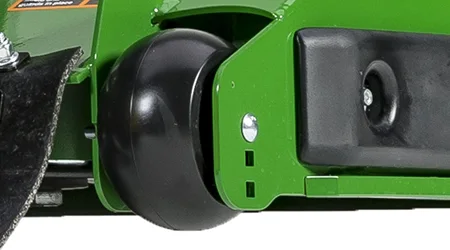

Anti-scalp rollers: front and rear included

2. Engine and Performance

• Engine model: Kawasaki FX801V V-Twin

• Power: 25.5 hp (19 kW) at 3,600 rpm

• Displacement: 852 cc (52 cu in) – 2 cylinders

• Lubrication: full-pressure system with replaceable oil filter

• Cooling: air-cooled with heavy-duty cartridge air filter and safety element

• Fuel: gasoline (propane kit option available for reduced emissions)

• Fuel consumption: 1.1 to 1.9 gal/h depending on load

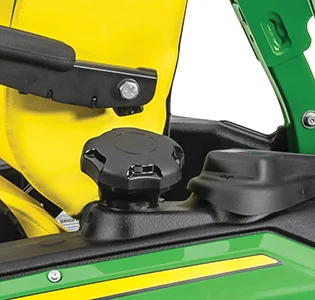

• Fuel tank capacity: 11.5 US gal (43.5 L)

• Charging system: 30-amp alternator

• Battery: 12 V – 300 CCA

3. Transmission and Drive

• Type: professional hydrostatic transmission

• Wheel motors: heavy-duty Tuff Torq integrated piston motors

• Forward speed: 0 to 12 mph (19.3 km/h)

• Reverse speed: 0 to 4.5 mph (7.2 km/h)

• Controls: dual levers for precise and responsive handling

• Hydraulic capacity: 5.6 L with replaceable internal filter

4. Comfort and Maneuverability

• Drive tires: 24x12-12 turf tires for optimal traction

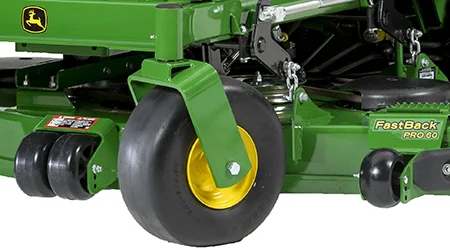

• Front tires: 13x6.5-6 flat-free

• ROPS: integrated, foldable rollover protection system

• Comfort seat: adjustable to reduce fatigue during long operating sessions

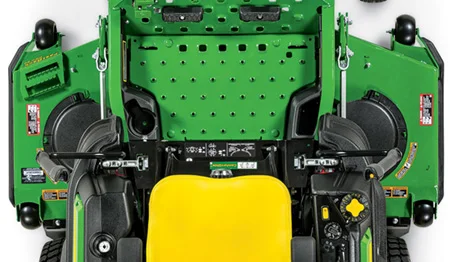

• Operator platform: ergonomic layout with easy access to controls

5. Safety and Reliability

• Safety system: Brake-N-Go with operator presence control

• Brake: internal wet disc, hand-operated

• PTO: electric clutch – 225 lb-ft (305 Nm)

• Slope capability: up to 20° (limited to 10° with collection system)

6. Dimensions and Weight

• Overall length: 84 in (213 cm)

• Width:

  • With deflector: 74 in (188 cm) – 60" deck

  • Rear discharge: 63.5 in (161.3 cm)

• Height:

  • With ROPS up: 73 in (185 cm)

  • ROPS folded: 47 in (119 cm)

• Weight: 1,296–1,383 lb (588–627 kg)

7. Warranty

• 36 months / 1,200 hours (whichever occurs first)

• Unlimited hours during the first 24 months
